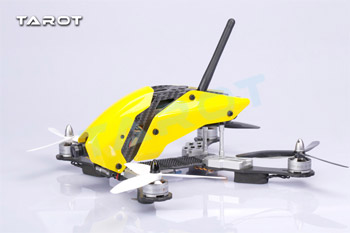

Tarot - 250 space through machine FPV Carbon models
Product Description:
Tarot FPV flight time and space through the machine through a variety of environments under applicable to new visual experience, bring through the extraordinary experience. The overall design has inherited the Tarot usual features, smooth the top with a unique way to glide, side air intakes and sketched out the outline style, with good aerodynamic performance.
A variety of eye-catching colors of PET Smart shell, cover retractable design allows maintenance becomes more convenient. Powerful Tarot metal CNC processing capacity, so that all the connection points are used tenon architecture. Can freely adjust the camera angles, quick release locking design, the antenna spacing, the whole weight and many other wonderful ingenuity think, can be found on this through the machine.
Recommended Electronic Equipment Type:
Brushless motor: 1806 TL300H1 / TL300H2
Brushless ESC: NANO12A (Required) TL300G2 available separately; UBEC power TL2681
Rotor size: 5 inch clover paddle TL300E
Camera: PAL standard; TL300M / TL300M2-Ntsc standard; TL300MN / TL300MN2
MINI CC3d fly through the machine control
5.8G wireless image transmission: TL300N / TL300N2
5.8G image transmission antenna group: TL300K / TL300K2
Lithium-polymer battery: Format 11.1V / 2200MAH (size of less than the following requirements)
Note that the battery Dimensions: Length 70-120MM / width 37MM / height 27.5MM
Related Item:
250 space through machine FPV Carbon models TL250C
280 space through machine FPV Carbon models TL280C
FPV half time and space through the machine 250 carbon type TL250H
FPV half time and space through the machine 280 carbon type TL280H
250 space through machine Carbon Power Suit TL250CT
280 Carbon space through machine power suit TL280CT
250 Semi-carbon power and space through the machine suits TL250HT
280 Semi-carbon power and space through the machine suits TL280HT
Product parameters:
Wheelbase: 250MM
Empty rack height / assembly height: 90.4MM
Empty frame length / Total Length: 203MM / 288MM
Empty frame width / assembly width: 220MM / 303MM
Empty Weight: 133G
Product Specifications:
Through the body 1
JST plug 1
70MM steering line 2
XT60 plug 1
Battery Magic sticky 1
Battery Ties 1
English manual 1
